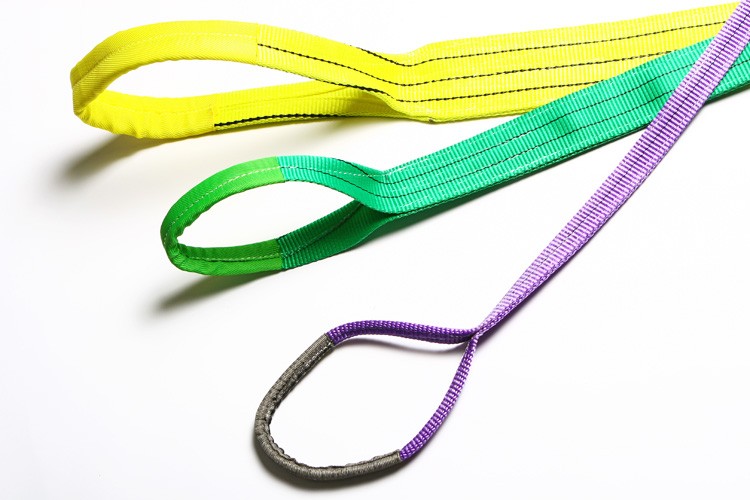

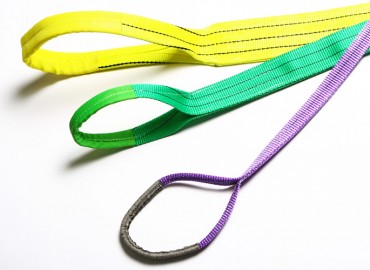

Webbing slings, EN 1492-1

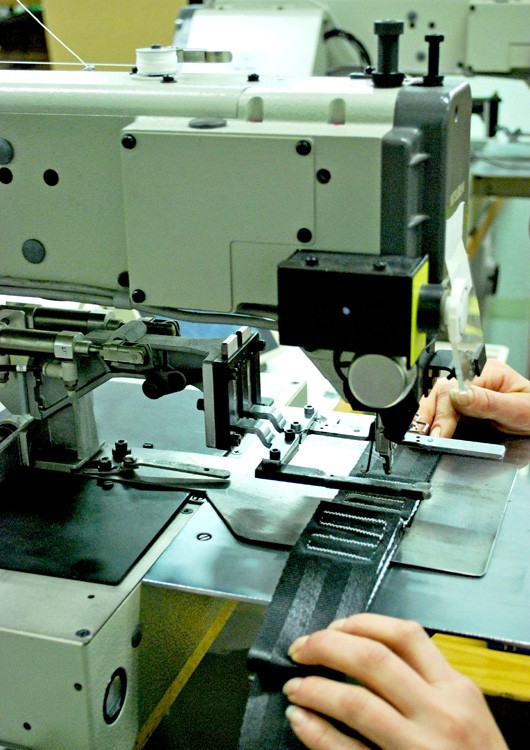

We manufacture Double Ply slings as per European Norm, EN 1492-1 with a Safety Factor of 7:1. The color of the webbing indicates the Safety Working Load/ Working Load Limit of the sling.  Also we manufacture 3 and 4 ply lifting slings with larger lifting capacities.

1. Individual certificates provide each sling.

2. Each sling is provided with protection for the eyes.

3. All slings can be provided with protective polyester sleeve of any length.

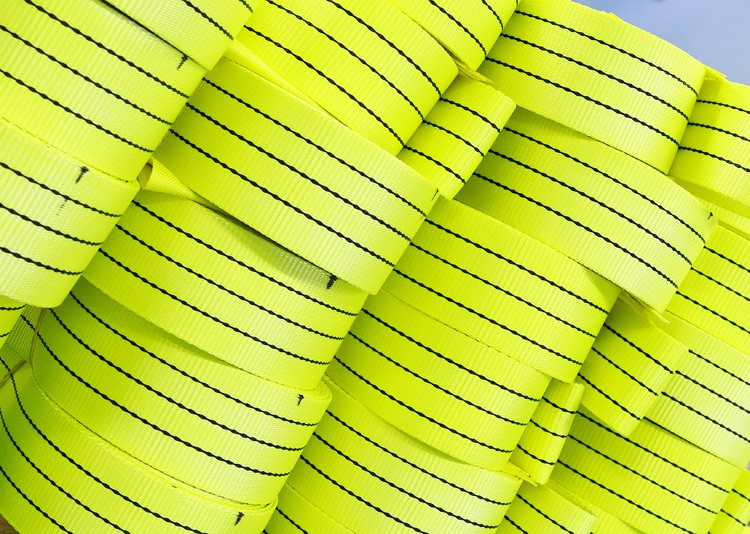

Webbing from West Europe (with black lines)
SWL/WLL	Width	Color	SWL/WLL in kg at different modes
1 T	30 mm	Violet	1000	2000	1400	800	1000
2 T	60 mm	Green	2000	4000	2800	1600	2000
3 T	90 mm	Yellow	3000	6000	4200	2400	3000
4 T	120 mm	Grey	4000	8000	5600	3200	4000
5 T	150 mm	Red	5000	10000	7000	4000	5000
6 T	180 mm	Brown	6000	12000	8400	4800	6000
8 T	240 mm	Blue	8000	16000	11200	6400	8000
10 T	300 mm	Orange	10000	20000	14000	8000	10000

Flat Endless Polyester Slings (ES)

We manufacture endless slings of different capacities upon customer request, also with different safety factors and various widths.
